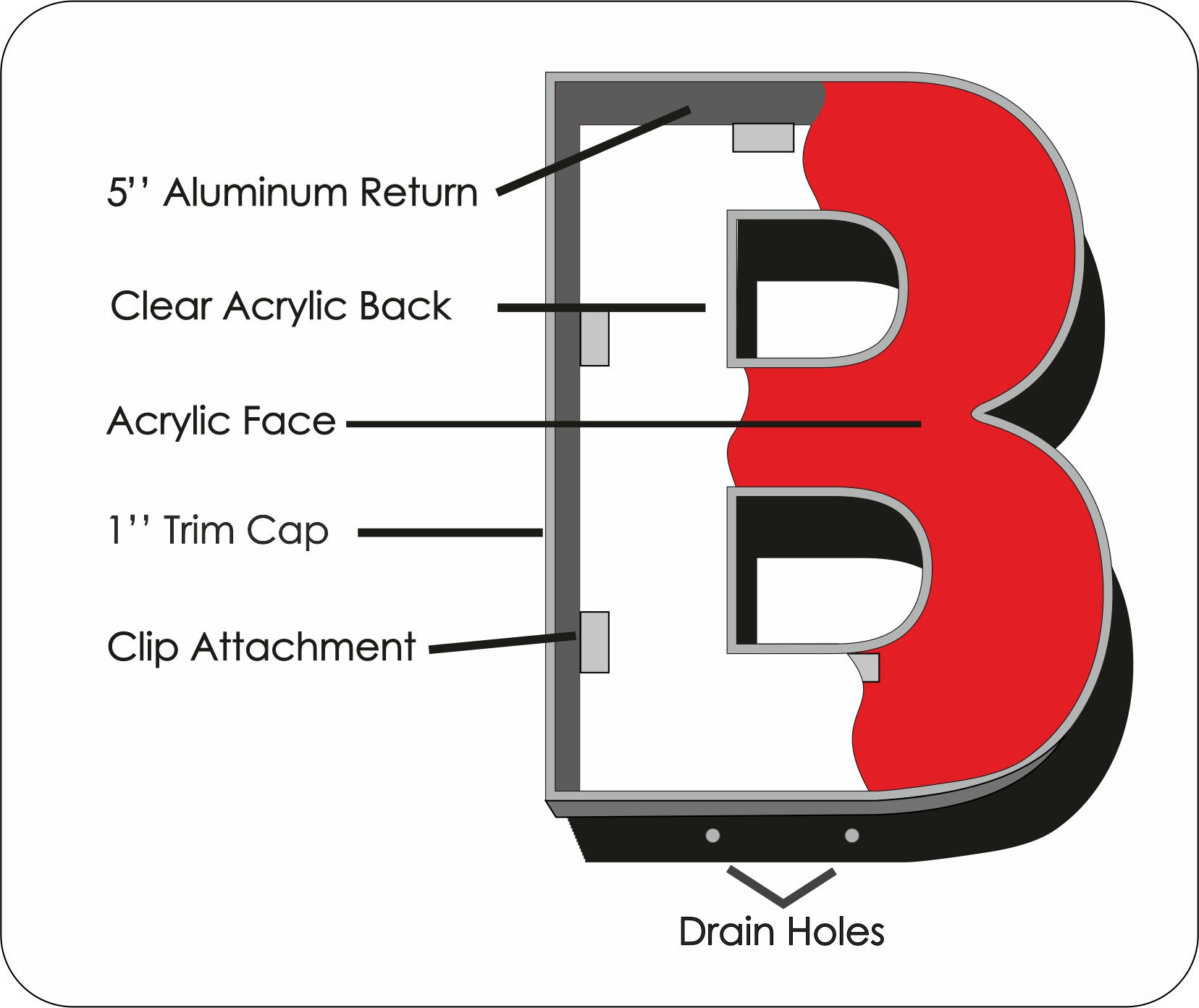

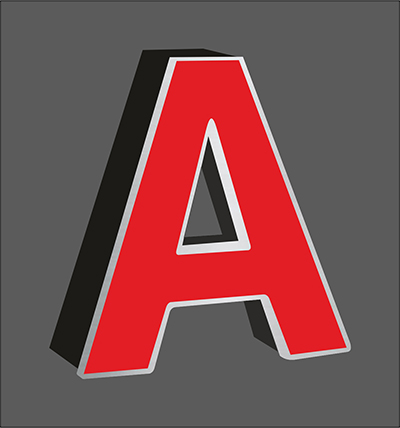

Frontlit Channel Letters

Front Lit Channel Letter Signs are the most common type of channel letter in use today.

It's main body is comprised of an .050” or .063” aluminum back and .040” aluminum returns (sides). After assembly, the inside of main body is painted white to maximize the effect of the LED lighting to be installed within. Complete Letter is Notched, Flanged and bent on state of the Art Accu Bend Channel Letter bending machine front cover is made of Acrylic with Jewelite trim cap.

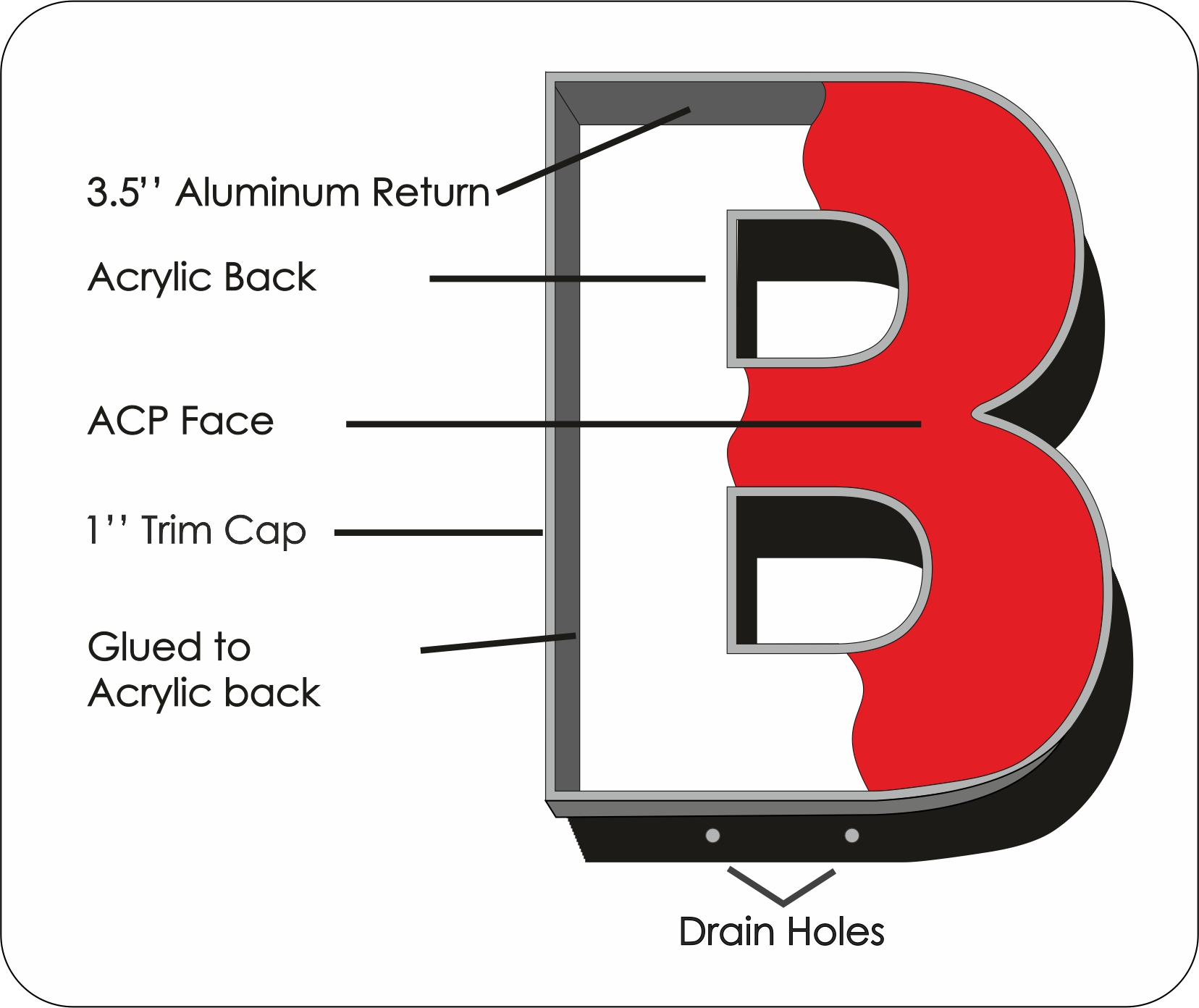

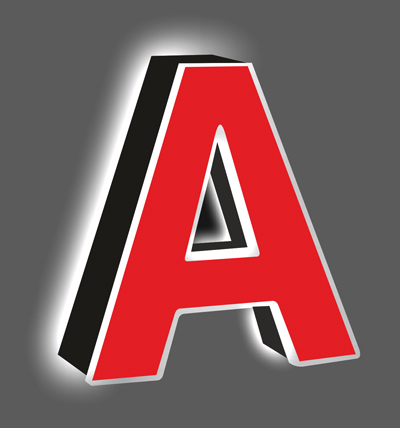

Dual Lit Channel Letters

Dual lit channel letters When trying to make a branding impact, The dual lit channel letter is the latest design to come along. Additionally, the exterior can be painted to the color specified at the time of order.

Its main body is comprised of a clear ¼” Acrylic back and .040 aluminum returns(Sides), the insides of which are painted white to maximize the effect of the LED lighting to be installed within.

The face of the dual illuminated channel letter is made of 3/16” acrylic with a 1” trim cap retainer which is assembled to the main body mechanically. Print can be added to the face to achieve any colors or gradients no available in a standard acrylic. Comes with Standard Standoff typically 2” placed between the back of each letter and the wall. The end result is an eye catching sign that is bright, legible and different from the others on the landscape.

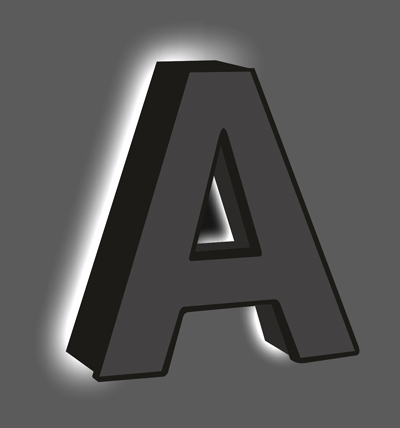

Reverse Lit Channel Letter

Reverse Lit Channel Letter Signs are becoming more popular as many high-end, new construction leases call for this aesthetically appealing design. The main body of this design is comprised of an .090 aluminum face and .050 aluminum returns (sides).

After assembly, the inside of main body is painted white to maximize the effect of the LED lighting to be installed within

After assembly, the inside of main body is painted white to maximize the effect of the LED lighting to be installed within

Additionally, the exterior can be painted to the color specified at the time of the order or vinyl is applied to achieve the desired look. The back of the Reverse Illuminated Channel Letter is made of clear 1/4″ polycarbonate, which is strong enough to support the weight of the main body and LED lighting using angled clips and matching screws. These letters are also called "halo lit" or "backlit" letters. Reverse channel letters are produced with aluminum faces and returns. These back lit letters are mounted away from the wall so a halo forms behind them.
